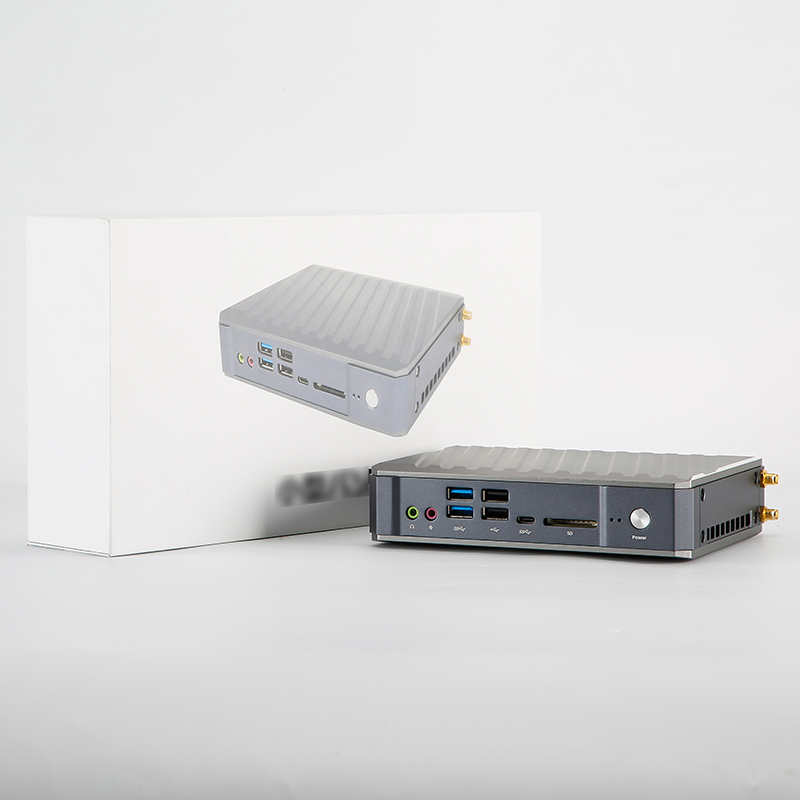

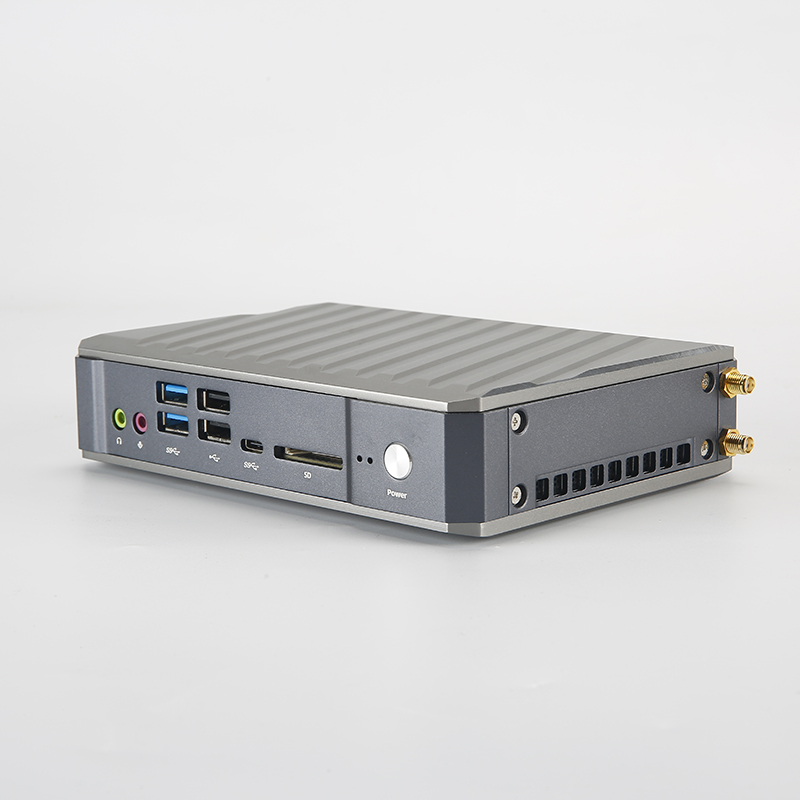

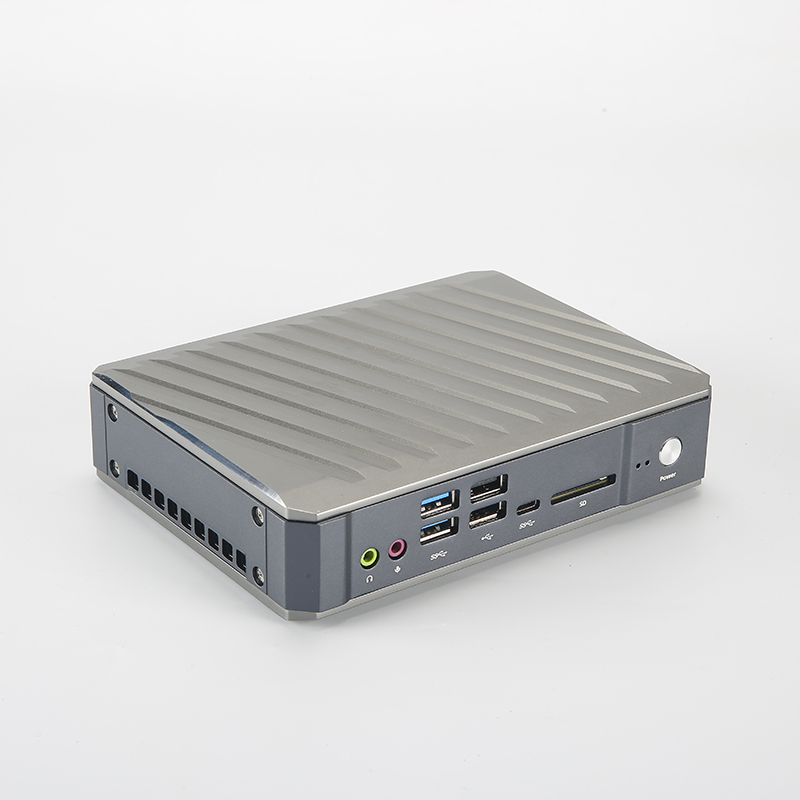

Micro Host-BQM2
Support IntelR whiskeylake/cometlake low-power 15W series CPU;
Support 2* DDR4/2133/2400/2666MHZ memory, maximum support 32GB;
Display support DP, HDMl;
Support 2 Gigabit networks;
Support 1 M.2 (WIFI) and 1 M.2 SSD;
Support 6 USB ports;
Support 12V/19v DC power supply;⑧Support 1*COM serial port;
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
CPU |
Intel Comet Lake-U 15W Core i7-10510U i5-10210U i3-10110U 5205U |
internal storage |
Memory type |
DDR42133MHz/2400MHz/2666MHz |
|
video card |
IntelO UHD Graphics |
Memory slot |
2XDDR4 S0-DIMM |
||
|

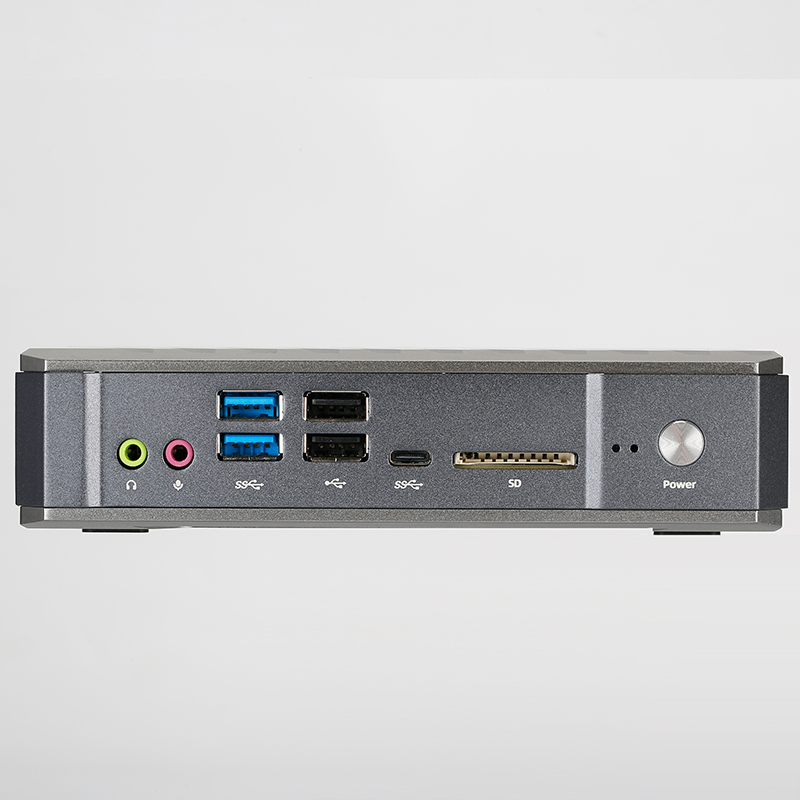

front panel |
Power-on key / indicator light |
1 Power-on button 1XPower LED 1XHDD LED |
back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
|
SD Card |
1XSD Ca rd |
network interface |
2XRJ451000M |
||
|
USB joggle |
2XUSB3.0 2XUSB2.0 |
Displays the interface |
1XHDMI 0ut 2.0 1XDP 1.2 |
||
|
Type-C |
1XType-C |
USB joggle |
2XUSB3.0 |
||
|
Audio interface |
1×3.5mm earphone 1×3.5mm MIC in |
|
COM mouth |
1XRS232 DB9 |
|
|
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AXBluetooth 4.0 or above |
Other parameters |
Appearance size |
168.4*128.4*40mm |
|
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3 X4) |
Ontology weight |
About 870g |
||
|
HDD |
1 SATA HDD 2.5inch (optional) |
Power adapter |
12V-19V 40W |
||
|
|
|
B10S support |
AMI UEFI BI0S, Support for PXE, WOL |
||
|
work environment |
Temperature: 0~50℃ Humidity: 5%~95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%~95% |
||
