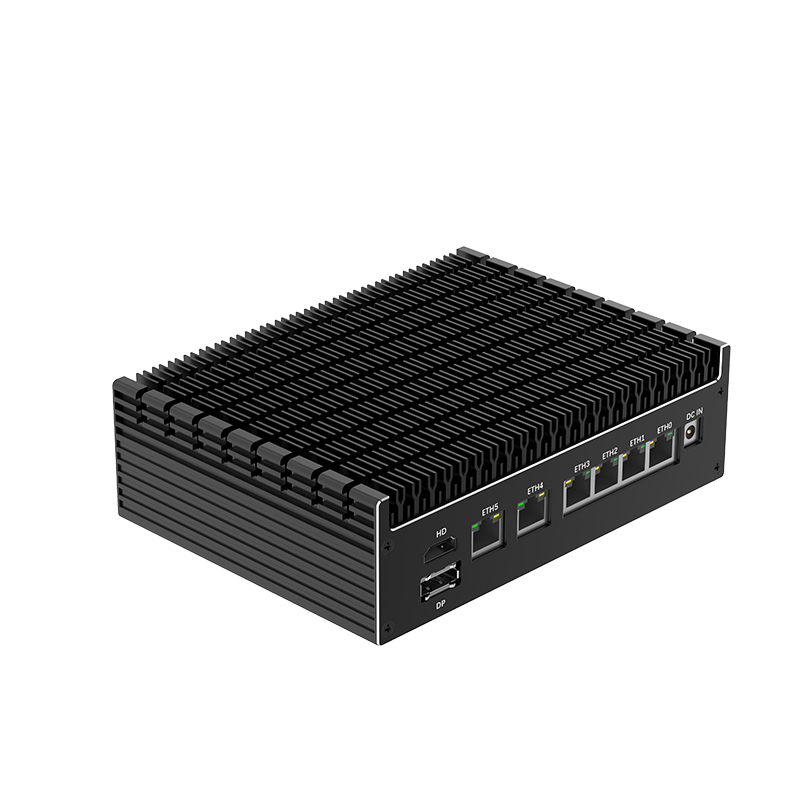

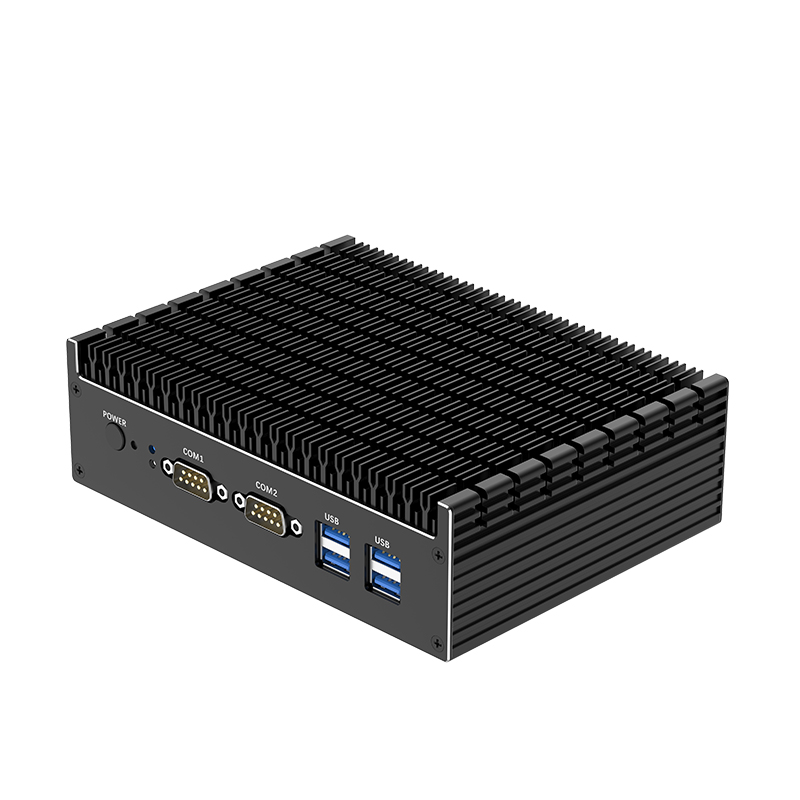

Fanless Industrial Mini Host with Multiple Network Ports-BQR6
Supports lntelR Cometlake low-power 15W series CPU;
Supports 1*DDR4/2133Mhz/2666Mhz memory, up to 32GB; 3 displays support DP, HDMl;
Supports 6 2.5G Intel wired network cards;
Supports 1 M. 2SSD, 1 2.5-inch HDD
Supports 4 USB ports;
Supports 12V/19v DC power supply;
Supports 2*COM serial ports;
Related products
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
CPU |
Intel Comet Lake-U 15W Core i7-10510Ui5-10210U i3-10110U 5205U |
internal storage |
Memory type |
DDR42133MHz/2400MHz/2666MHz |
|
video card |
Intel⑧UHD Graphics Support for 3-display |
Memory slot |
1XDDR4 S0-DIMM |
||
|
front panel |
Boot button |
1 Power-on button 1XReset |
back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
|
pilot lamp |
1XPower LED 1XHDD LED |
network interface |
6XRJ452500M (where LAN5 and R_USB4 Col ay, either option) |
||
|
USB joggle |
4XUSB3.0 |
Displays the interface |
1X HDMI 0ut 1.4 1XDP 1.2 |
||
|
COM mouth |
2XRS232 DB9 |
USB joggle |
2 XUSB 2.0 (and LAN5) |
||
|
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AXBluetooth 4.0 or above |
Other parameters |
Appearance size |
170*126*51.3mm |
|
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3 X4) |
Ontology weight |
About 945g |
||
|
HDD |
1XSATA HDD 2.5inch (optional) |
Power adapter |
12V-19V 40W |
||
|
|
|
BI0S support |
AMI UEFI BI0S, Support for PXE, WOL |
||
|
work environment |
Temperature: 0~50℃ Humidity: 5%~95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%95% |
||
