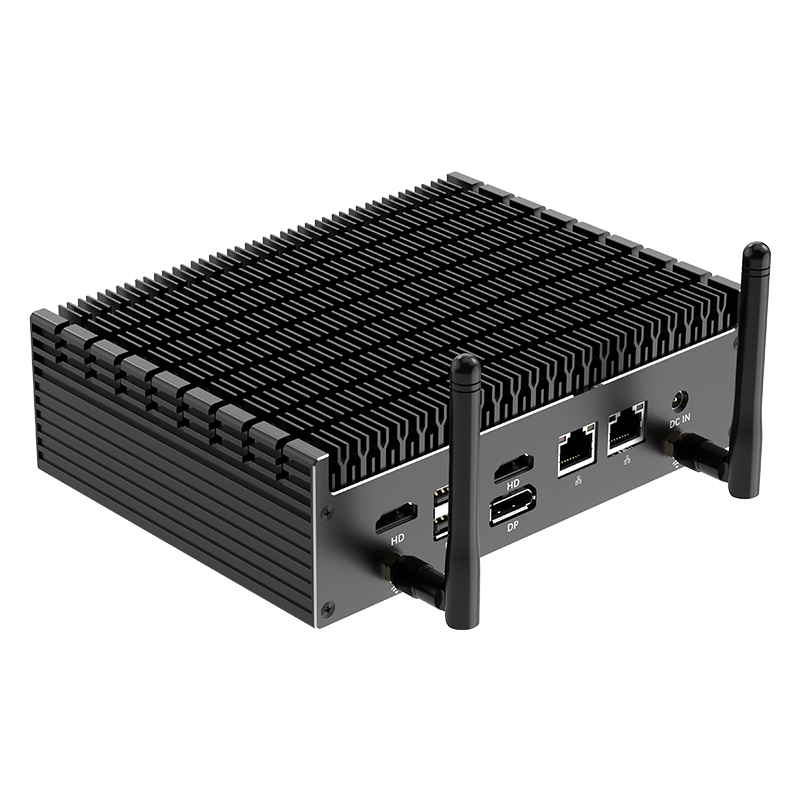

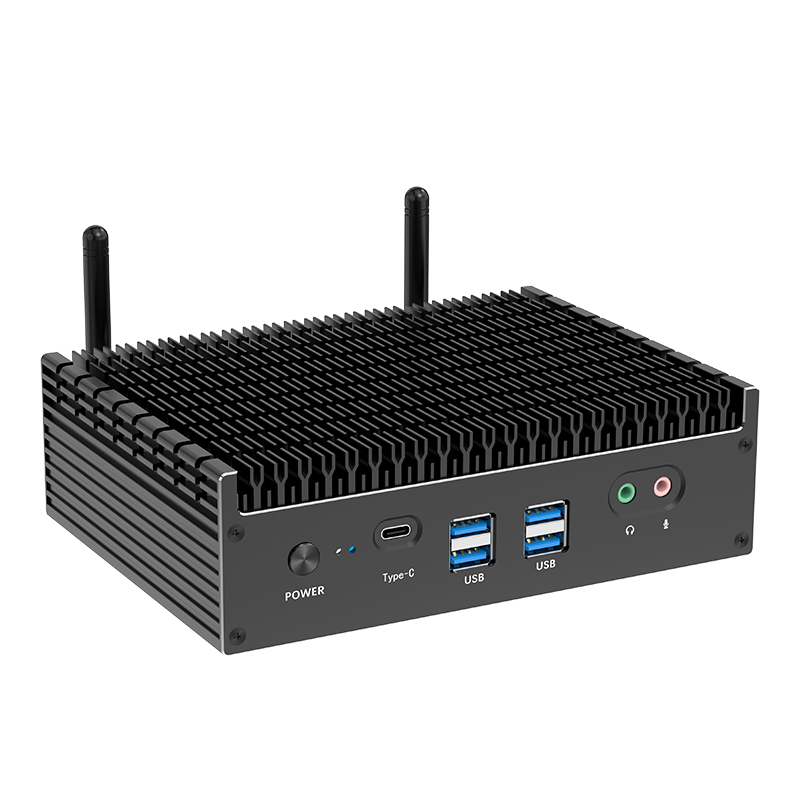

Fanless Mini PC-GM1
Intel 12 or 13 generation CPU support 2 * DDR4/2133 MHZ, 2666 MHZ / 3200 MHZ memory, maximum support 32 gb or 2 * DDR5 4800 MHZ / 5200 MHZ;
Support 4 display 1*DP, 2*HDMI, 1* Thunderbolt4;
Support 2. 5G wired network cards;
Supports 1 M.2 (WIFI/BT) and 2 M.2 SSDS;
Supports 6 USB ports;
Support 12V/19V DC power supply;
Support 2*COM serial port;
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
CPU |
Intel Core i7-1235U 17-1255U 1335U 1355U et al. TDP: 15W |
internal storage |
Memory type |
DDR 4:2133 MHz / 2400 MHz / 2666 MHz / 3200 MHZ or 2 * DDR54800Mhz / 5200 Mhz |
|
CPU terrace |
Intel 12th/13th CPU |
Memory slot |
Of 2XDDR4 S0-DIMM up to 64GB or 2XDDR5 S0-DIMM up to 96GB |
||
|
video card |
I ntelO IrisB Xe Graphics Support for 4-display |
||||
|

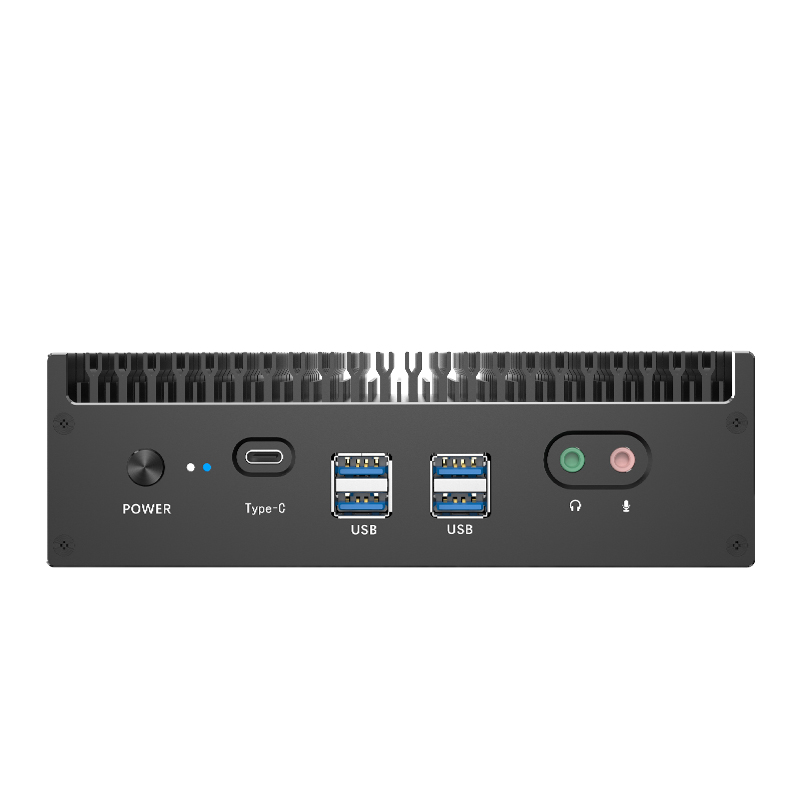

front panel |
Boot button |
1XPower Button |

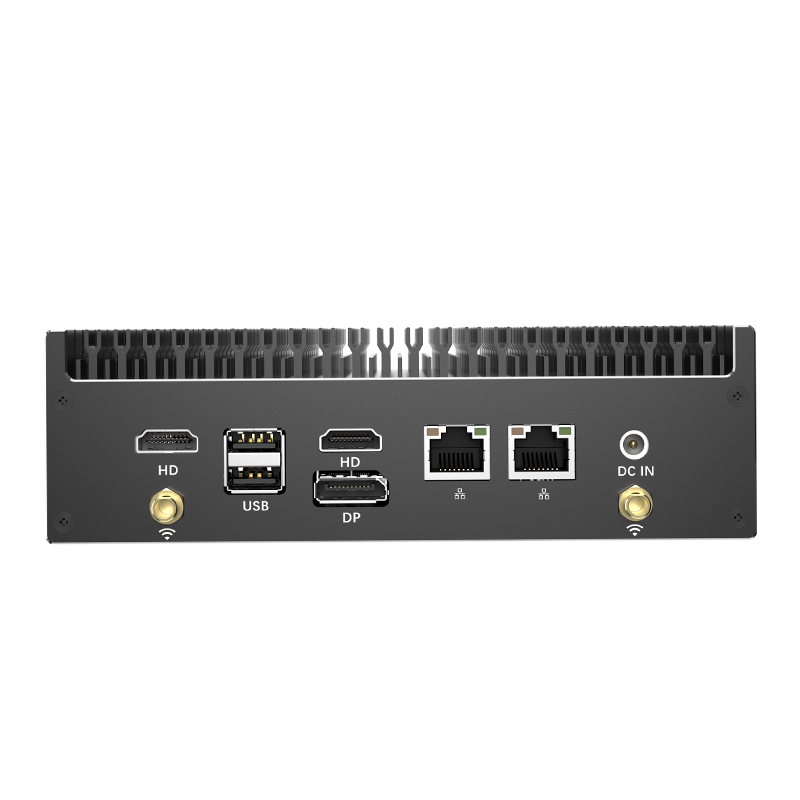

back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
|
thunder and lightning |
1XThunder bolt4 (compatible with PD power supply) |
network interface |
2XRJ452500M |
||
|
USB joggle |
4XUSB3.2 Gen1 |
Displays the interface |
2XHDMI 0ut 2.04K 60HZ1XDP 1.41XType-C Thunderbolt 4 |
||
|
Audio interface |
1X3.5mm earphone 1X3.5mm MIC in |
USB joggle |
2XUSB2.0 |
||
|
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIF 1:802.11 b / g / n / AC / AXBluetooth 4.0 or above |
Other parameters |
Appearance size |
170*126*51.3mm |
|
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3 X4 support) 1 XM. 22280 slot (NVME PCIE GEN4 X4 |
Ontology weight |
About 945g |
||
|
HDD |
1 SATA HDD 2.5inch (optional) |
Power adapter |
12V-19V 90W |
||
|
|
|
|
B10S support |
AMI UEFI BI0S, Support for PXE, WOL |
|
|
work environment |
Temperature: 0~50℃ Humidity: 5%~95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%~95% |
||
