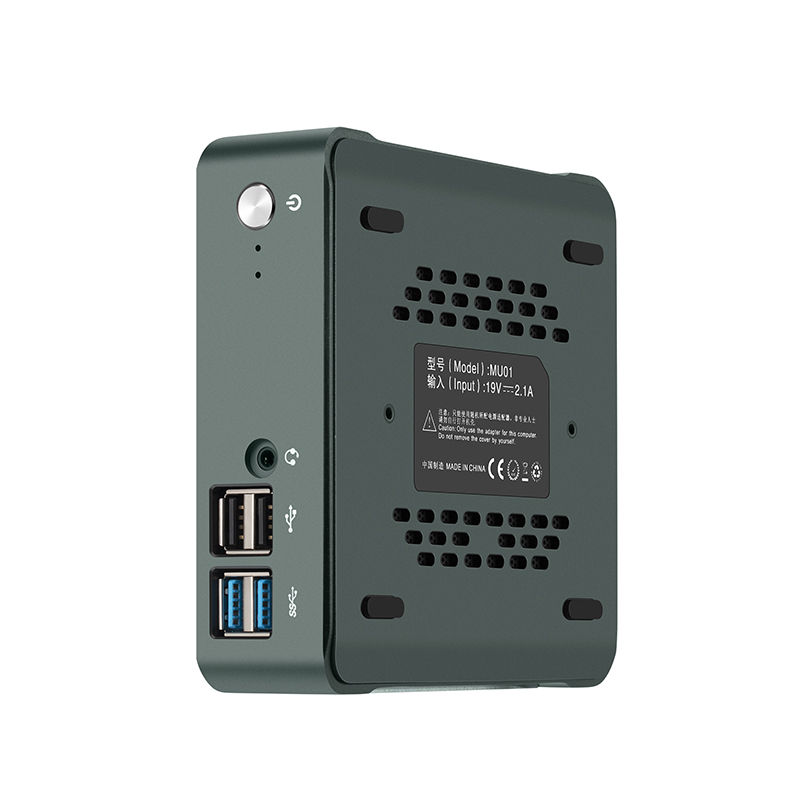

Micro Host-MU01
Support Intel whiskeylake/cometlake low-power 15W series CPU;
Support 2* DDR4/2133/2400/2666MHZ memory, maximum support 32GB;
Display supports DP, HDM l;
Support 1 Gigabit network;
Support 1 M.2 (WIFI/BT and 1 M.2 SSD;
Support 6 USB ports;
Support 12V/19V DC power supply;
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
CPU |
Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U / 17-8565U / 15-8265U / 4205U / 5205U, etc |
internal storage |
Memory type |
DDR42133MHz/2400MHz/2666MHz |
|
video card |
Intel⑧UHD Graphics |
Memory slot |
2XDDR4 S0-DIMM |
||
|

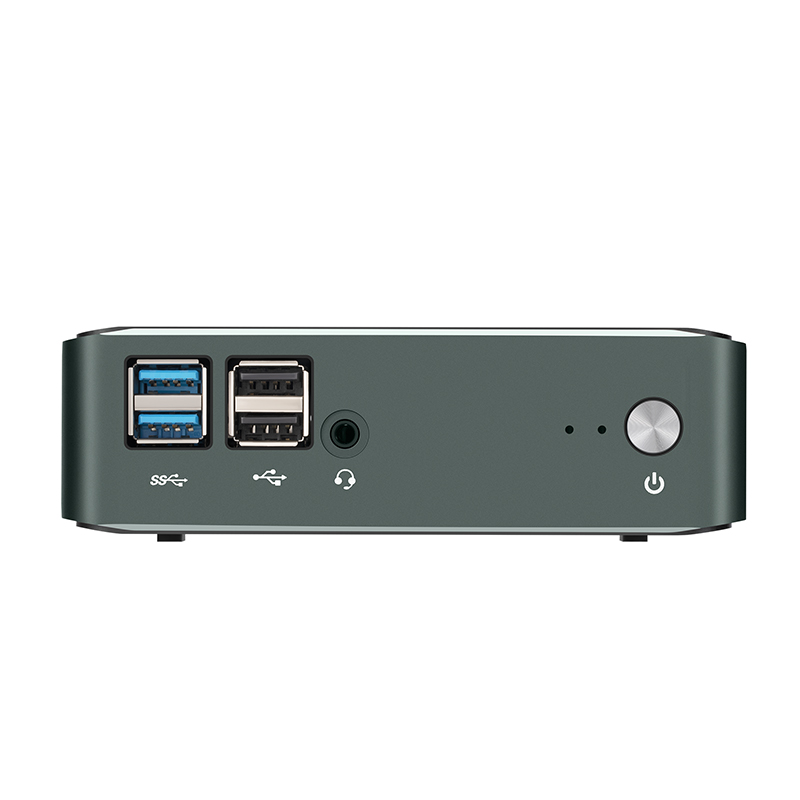

front panel |
Boot button / |
1 Vacation boot button |

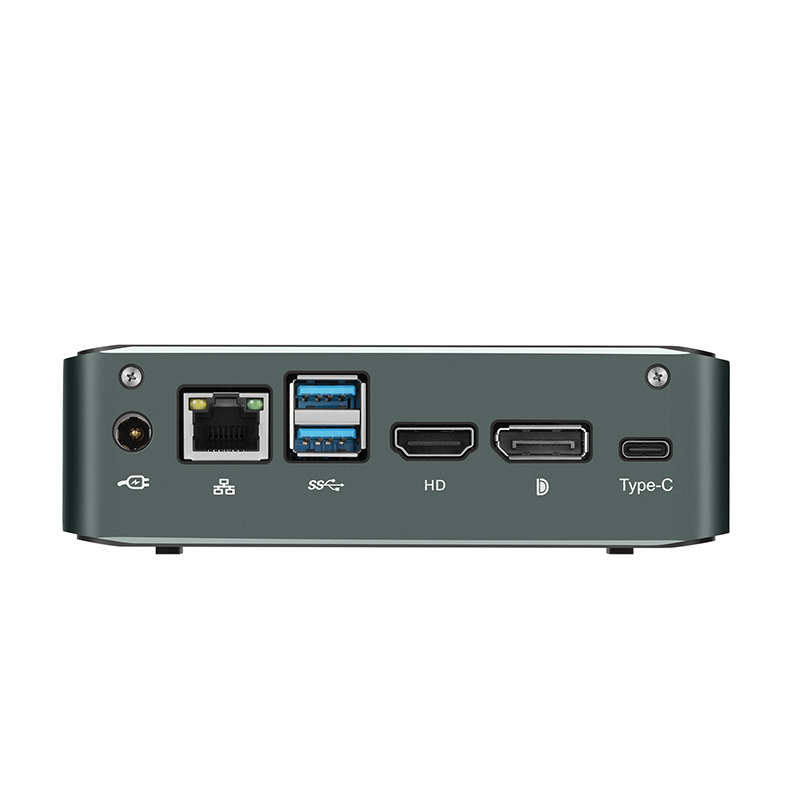

back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
|
pilot lamp |
1XPower LED 1XHDD LED |
network interface |
1XRJ451000M |
||
|
USB joggle |
2XUSB3.0 2XUSB2.0 |
Displays the interface |
1XHDMI 0ut 2.0 1XDP 1.2 |
||
|
Audio interface |
1×3.5mm ear phone 1×3.5mm MIC in |
USB joggle |
2XUSB3.01XType-C |
||
|
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
Other parameters |
Appearance size |
128*128*38.5mm |
|
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3 X4 support) |
Ontology weight |
About 630g |
||
|
HDD |
1 SATA HDD 2.5inch (optional) |
Power adapter |
12V-19V 40W |
||
|
|
|
B10S support |
AMI UEFI B10S, Support for PXE, WOL |
||
|
work environment |
Temperature: 0~50℃ Humidity: 5%~95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%~95% |
||
