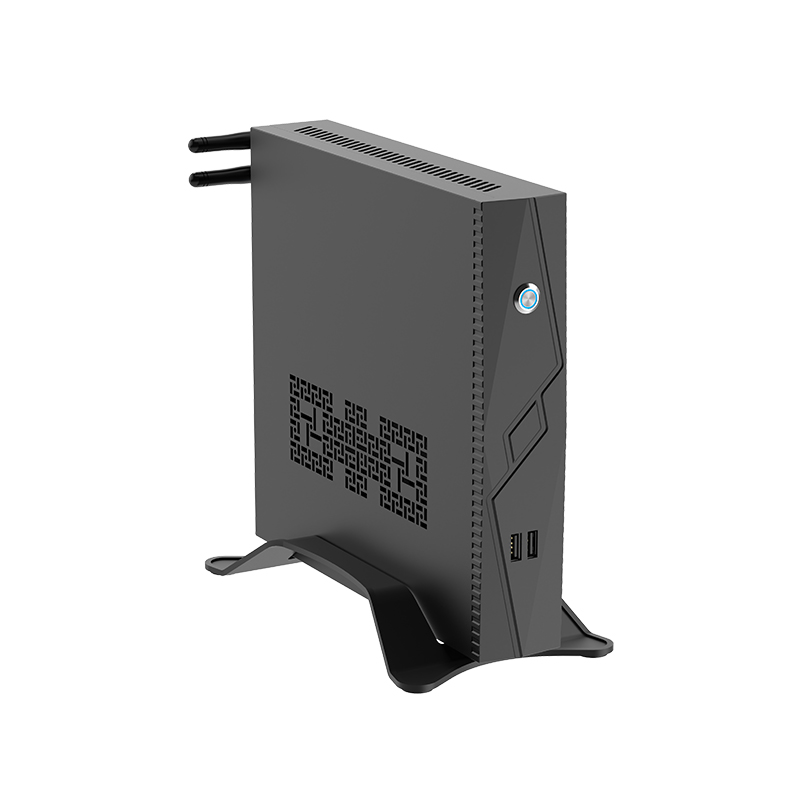

Game Mini PC -GM2
Support Intel 8th/9th/10th/12th/13th generation IntelCoreR15/17/1945w CPU;
Independent graphics card GTX1650TI/4G/RTX2060 6G/RTX3050TI 8G, etc.
Support dual-channel DDR4 notebook memory, up to 64GB;
Support triple display 2*HDMI, 1*Type-c (DP+USB);
Support 1 100OM wired network card;
Support 1 M.22230 (support WIFI/BT);
Support 2 M.2/2280 SSD (SATA&NVME);
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
|
Intel 8 / 9 / 1045W CPU Intel Alder Lake-H 12th gen CPUIntel Raptor Lake-H 13th gen CPU |
internal storage |
Memory type |
DDR4:2133MHz/2400MHz/2666MHz/3200MHZ |
|
CPU model |
17-10750H / 19-9880H / 17-9750H / 17-8750H et al Intel i7-12700H, 19-12900H, 13900H, etc |
Memory slot |
2XDDR4 S0-DIMM up to 64GB |
||
|
video card |
IntelO UHD Graphics Support for 3-explicit GTX1650TI / 4G / RTX20606G / RTX3050TI 8G |
||||
|
front panel |
Boot button |
1XPower Button |
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AXBluetooth 4.0 or above |
|
USB joggle |
2XUSB2.0 |
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3X4 support) 1 XM. 22280 slot (SATA or NVME) |
||
|

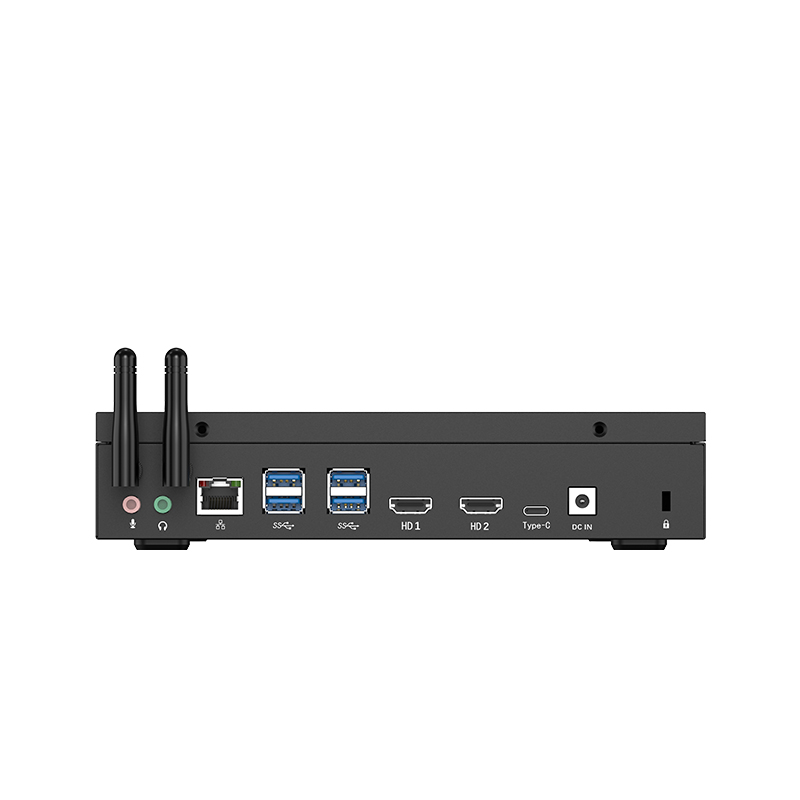

back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
HDD |
1XSATA HDD 2.5inch (optional) |
|
|
network interface |
1XRJ451000M Optional |
Appearance size |
227*215*45mm |
||
|
Displays the interface |
1XHDMI 0ut 1.44K 30HZ1XHDMI 0ut 2.04K 60HZ1XType-C 4K 60HZ |
Ontology weight |
About 1300g |
||
|
USB joggle |
4XUSB3.2 Gen1 |
adapter |
19V 180W |
||
|
Audio interface |
1×3.5mm earphone 1X3.5mm MIC in |
BI0S support |
AMI UEFI B10S, Support for PXE, WOL |
||
|
work environment |
Temperature: 0~50℃ Humidity: 5%95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%~95% |
||
