Micro Host -BQM3
Support IntelR Tiger-lake-U low-power 28W series CPU;
Support 2* DDR4 memory, up to 32GB;
Support 3 display DP, HDMl, Type-C
Support 1 Gigabit network;
Support 1 M.2 (WIFI) and 1 M.2 SSD;
Support 6 USB ports;
Support 19V DC power supply;
Support Thunderbolt 4
|
Product Detailed Specification Sheet |
|||||
|
Processor specifications |
CPU |
I ntel Tiger Lake-U 28W CPUCore i7-1165G7 / Core i5-1135G7 / Core i3-1115G4, etc |
internal storage |
Memory type |
DDR42133MHz/2400MHz/2666MHz |
|
video card |
I ntel⑧IrisB Xe Graphics Support for 3-display |
Memory slot |
2XDDR4 S0-DIMM |
||
|

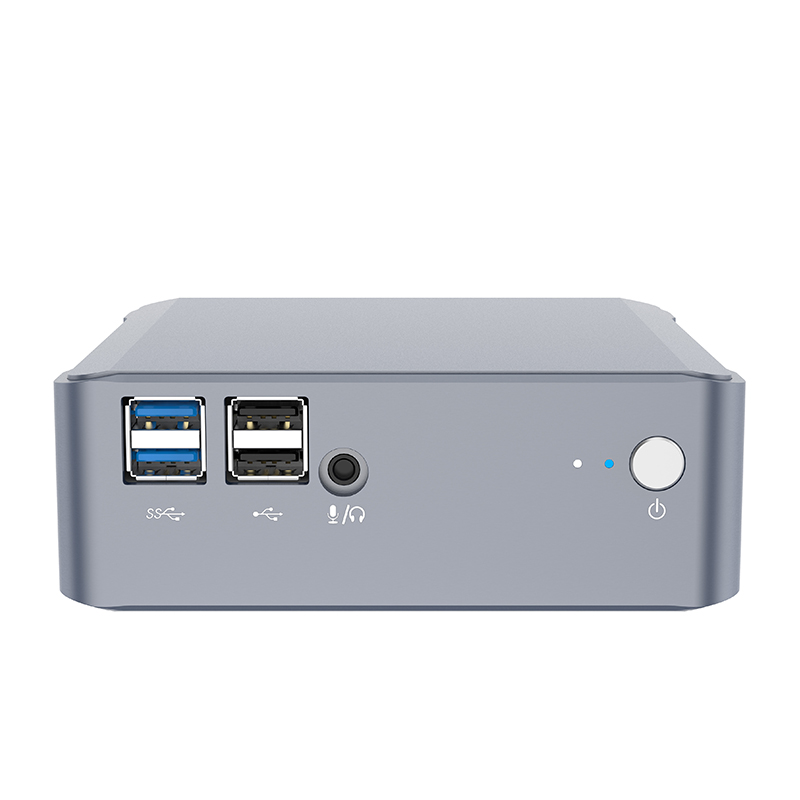

front panel |
Boot button / |
1X boot button |

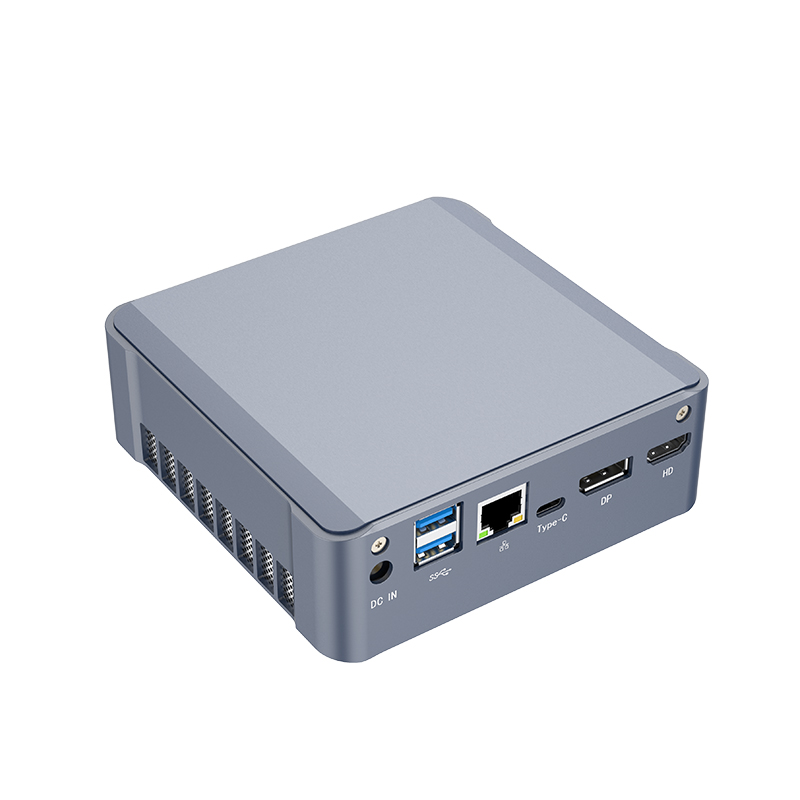

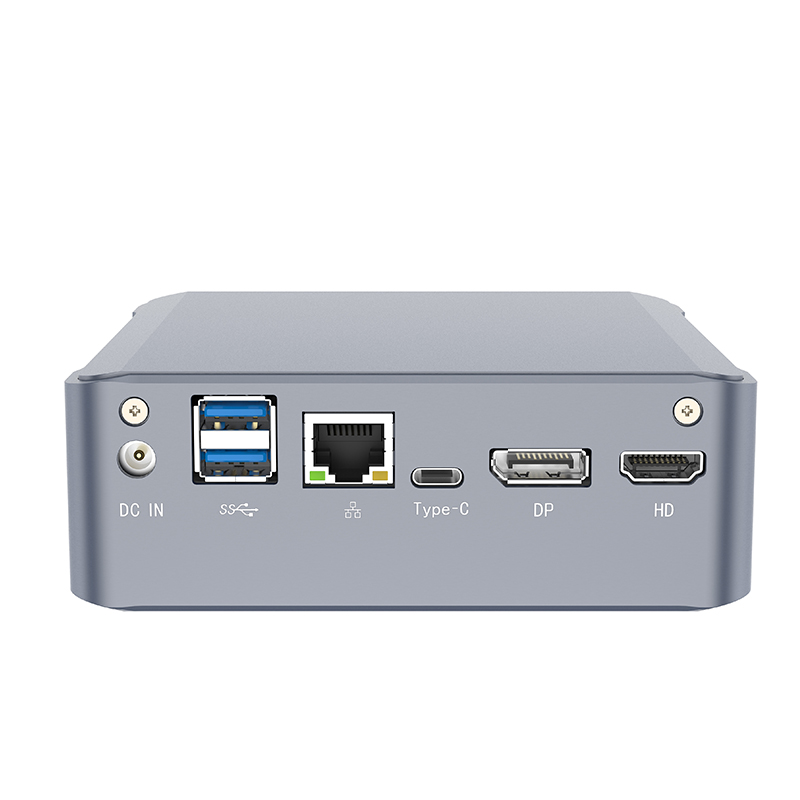

back panel |
Power port |
1XDC Jack 5.5*2.5mm(12-19V) |
|
pilot lamp |
1XPower LED 1XHDD LED |
network interface |
1XRJ451000M/2500M |
||
|
USB joggle |
2XUSB3.0 2XUSB2.0 |
Displays the interface |
1XHDMI 0ut 2.0 1XDP 1.41XType-C Thunderbolt 4 |
||
|
Audio interface |
1X3.5mm HP/MIC |
USB joggle |
2XUSB3.0 |
||
|
Extended slot |
WiFi slot |
1 XM. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AXBluetooth 4.0 or above |
Other parameters |
Appearance size |
128*128*45mm |
|
SSD slot |
1 XM. 22280 slot (SATA / NVME Gen3 X4 support) 1 XM. 22280 slot (SATA or NVME) |
Ontology weight |
About 480g |
||
|
HDD |
1XSATA HDD 2.5inch (optional) |
Power adapter |
12V-19V 65W |
||
|
|
|
B10S support |
AMI UEFI BI10S, Support for PXE, WOL |
||
|
work environment |
Temperature: 0~50℃ Humidity: 5%~95% |
Storage environment |
Temperature: -20~70℃ Humidity: 5%~95% |
||
